Kasda KW512 Wireless ADSL Modems

Setting up the Kasda KW512

Open a browser and go to http://192.168.1.1 (default UN/PW is admin/adslroot).

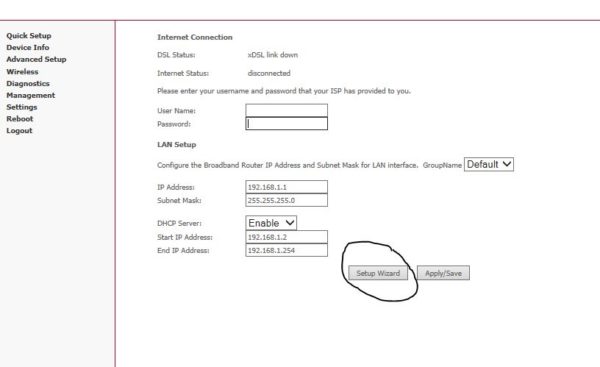

Click Setup Wizard

From the first drop down, choose ADSL over ATM.  Enter your username and password into the PPP username and PPP password fields.  Click Next

Setup your Wireless.  The default modem specs are set.  By default the wifi network will show up as Kasda_xxxxxx – you can change this to be whatever you need.

Next Choose your wireless security from the drop down menu.  WPA2-PSK will default the Wifi password to the mac address (all lower case) of the modem.  You may change this as well if you like.  Leaving it as the MAC will make the password harder to guess and you will always be able to find it by looking at the modem.
Click Next

Here if you want to turn off wireless, uncheck the box enable wireless box to disable wireless.

Click Apply/Save.   Your all set.

If you would like to restart the modem, do so by clicking the reboot link on the left side.
